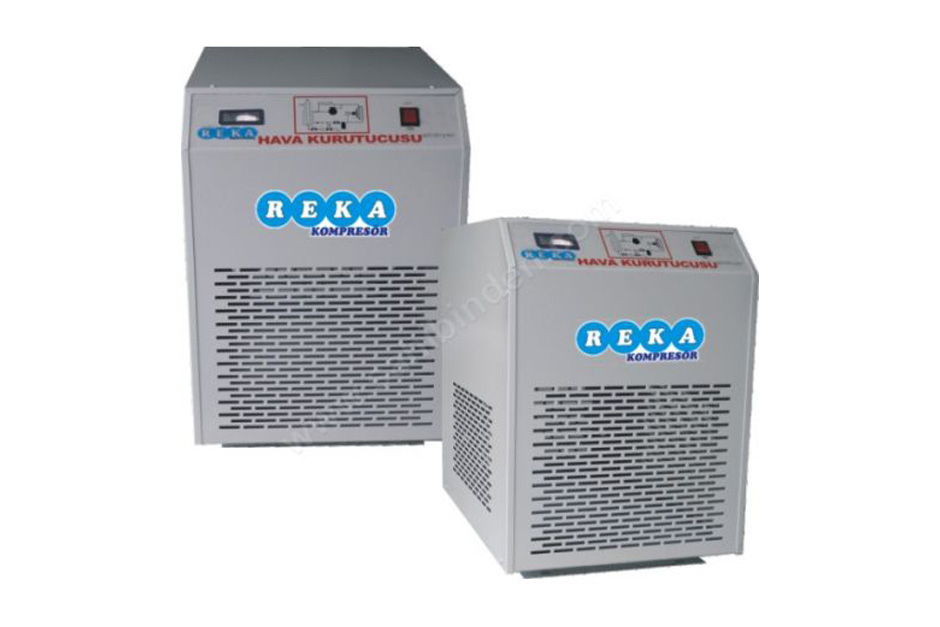

Air Dryers
Our air dryers operate without requiring filter maintenance and draining of water traps, while preventing water failure of pneumatic tools. They also minimize maintenance costs and prevent corrosion and pressure loss in piping.
General Features
- Filter Maintenance and Water Trap Draining,
- Requirement-Free,
- Minimized Air Distribution System Costs,
- Extensive Service Network,
- Piping Corrosion Prevention,
- Pressure Loss Prevention,
- Minimized Maintenance Costs,
- Pneumatic Tool Water,
- Failure Prevention,
- Spare Part Availability
Teknik Özellikler
| TYPE | CAPACITY | VOLT | AIR CONNECTION DIAMETER (inch) |
WORK PRESSURE (max) |
DIMENSIONS (W-L-H) (mm.) |
WEIGHT (KG.) |
||
|---|---|---|---|---|---|---|---|---|
| LT / MIN | CFM | m³ / HOUR | ||||||
| RAD-900 | 950 | 33 | 57 | 220/50/1 | 3/4″ | 16 | 500x400x500 | 40 |
| RAD-1200 | 1350 | 47 | 81 | 220/50/1 | 3/4" | 16 | 500x400x500 | 40 |
| RAD-1600 | 1600 | 56 | 96 | 220/50/1 | 3/4" | 16 | 500x400x500 | 40 |
| RAD-1800 | 1800 | 63 | 108 | 220/50/1 | 3/4" | 16 | 500x400x500 | 45 |
| RAD-2500 | 2600 | 91 | 156 | 220/50/1 | 3/4" | 16 | 500x400x500 | 50 |
| RAD-3000 | 3300 | 116 | 198 | 220/50/1 | 1" | 16 | 600x800x650 | 70 |
| RAD-4500 | 4500 | 158 | 270 | 220/50/1 | 1" | 16 | 600x800x650 | 75 |
| RAD-5500 | 5500 | 193 | 330 | 220/50/1 | 1 1/4" | 16 | 600x800x650 | 80 |
| RAD-6500 | 6500 | 228 | 390 | 220/50/1 | 1 1/4" | 16 | 820x800x700 | 90 |
| RAD-7000 | 7300 | 256 | 438 | 380/50/3 | 1 1/4" | 16 | 820x800x700 | 90 |
| RAD-10000 | 10000 | 333 | 570 | 380/50/3 | 1 1/2" | 16 | 900x900x850 | 140 |
| RAD-13500 | 13500 | 478 | 810 | 380/50/3 | 1 1/2" | 16 | 950x1120x900 | 180 |
| RAD-15000 | 15000 | 543 | 930 | 380/50/3 | 2" | 16 | 950x1120x900 | 200 |
| RAD-17000 | 17000 | 595 | 1020 | 380/50/3 | 2" | 16 | 1000x1200x1200 | 310 |
| RAD-21000 | 21000 | 735 | 1260 | 380/50/3 | 2 1/2" | 16 | 1000x1200x1200 | 340 |
| RAD-26000 | 26000 | 910 | 1560 | 380/50/3 | 2 1/2" | 16 | 1200x1600x1350 | 380 |
| RAD-35000 | 36000 | 1260 | 2160 | 380/50/3 | 2 1/2" | 16 | 1300x1700x1450 | 530 |
| RAD-45000 | 45000 | 1566 | 2700 | 380/50/3 | 3" | 16 | 1450x1900x1500 | 550 |
| RAD-65000 | 65000 | 2275 | 3900 | 380/50/3 | 3" | 16 | 1550x1900x1800 | 780 |
